• Pickup bed includes bed assist step (Deleted when (ZW9) pickup bed delete is ordered.)
• Push Button Start
• Transfer case, two-speed, electronic shift with push button controls (Requires 4WD models.)
• Auto-locking rear differential
• Four wheel drive
• Air filter, heavy-duty
• Air filtration monitoring
• Recovery hooks, front, frame-mounted, Black
• Frame, fully-boxed, hydroformed front section and a fully-boxed stamped rear section
• Suspension Package (Not available with (X31) Off-Road Package.)
• Steering, Recirculating Ball with smart flow power steering system
• Brakes, 4-wheel antilock, 4-wheel disc with DURALIFE rotors
• Brake lining wear indicator

• Wheels, 17" (43.2 cm) painted steel, Silver
• Tires, LT245/75R17E all-season, blackwall
• Tire, spare LT245/75R17E all-season, blackwall (Included and only available with (QHQ) LT245/75R17E all-season, blackwall tires with (E63) pickup bed models. Available to order when (ZW9) pickup bed delete and (QHQ) LT245/75R17E all-season, blackwall tires are ordered.)
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Deleted with (ZW9) pickup bed delete.)
• Bumper, front chrome lower
• Bumper, rear chrome with bumper CornerSteps
• Bed Step, Black integrated on forward portion of bed on driver and passenger side (Not available on (ZW9) pickup bed delete.)
• CornerStep, rear bumper
• Cargo tie downs (12), fixed, rated at 500 lbs per corner
• Moldings, beltline, Black
• Grille (Chrome with flat black grille insert bars.)
• Headlamps, Animated LED projectors LED turn signals and Daytime Running Lamps
• IntelliBeam, automatic high beam on/off (Included and only available with (PDI) Sierra HD Pro Safety.)
• Lamps, cargo area cab mounted integrated with center high mount stop lamp, with switch in bank on left side of steering wheel
• Taillamps, LED Signature Tail, Incandescent Brake, Turn & Reverse Lamps
• Mirrors, outside high-visibility vertical trailering lower convex mirrors, manual-folding/extending (extends 3.31" [84.25mm]), molded in Black (Not available on Regular Cab models.)
• Glass, solar absorbing, tinted
• Door handles, Black grained
• Tailgate, standard (Deleted with (ZW9) pickup bed delete.)
• Tailgate, locking, utilizes same key as ignition and door (Included and only available with (QK1) standard tailgate. Deleted with (ZW9) pickup bed delete.)
• Tailgate, gate function manual, no lift assist (Deleted with (ZW9) pickup bed delete.)
• Tailgate and bed rail protection caps, top (Deleted with (ZW9) pickup bed delete.)

• Audio system, GMC Infotainment System with 7" diagonal color touch-screen AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth streaming audio for music and select phones; featuring wired Android Auto and Apple CarPlay capability for compatible phones
• Audio system feature, 6-speaker system (Requires Crew Cab or Double Cab model.)
• Bluetooth for phone connectivity to vehicle infotainment system
• Wireless phone projection for Apple CarPlay and Android Auto
• Wi-Fi Hotspot capable (Terms and limitations apply. See onstar.com or dealer for details.)

• Seats, front 40/20/40 split-bench with covered armrest storage and under-seat storage (lockable)
• Seat trim, Vinyl
• Seat adjuster, driver 4-way manual
• Seat adjuster, passenger 4-way manual
• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor) (Not available with Regular Cab model.)
• Floor covering, rubberized-vinyl (Not available with LPO floor liners.)
• Steering wheel, urethane
• Driver Information Center, 3.5" diagonal monochromatic display
• Rear Seat Reminder (Requires Crew Cab or Double Cab model.)
• Exterior Temperature Display, located in radio display
• Compass, located in instrument cluster
• Windows, power front, drivers express up/down
• Window, power front, passenger express down
• Windows, power rear, express down
• Door locks, power
• Remote Keyless Entry
• USB Ports, 2, Charge/Data ports located on instrument panel
• Power outlet, front auxiliary, 12-volt
• Air conditioning, single-zone
• Air vents, rear (Not available with Regular Cab model.)
• Mirror, inside rearview, manual tilt
• Assist handles front A-pillar mounted for driver and passenger, rear B-pillar mounted
• GMC Connected Access capable (Subject to terms. See onstar.com or dealer for details.)

• Front Pedestrian Braking (Included and only available with (PDI) Sierra HD Pro Safety.)
• Automatic Emergency Braking (Included and only available with (PDI) Sierra HD Pro Safety.)
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps, LED signature lighting
• LED Signature DRL's
• Airbags, Dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar and GMC Connected Services capable (Terms and limitations apply. See onstar.com or dealer for details.)
• HD Rear Vision Camera (Not available with (ZW9) pickup bed delete. Removed with (UV2) HD Surround Vision or (ZW9) pickup bed delete. Not available with (Z6A) Gooseneck / 5th Wheel Prep Package.)
• Hitch Guidance dynamic single line to aid in truck trailer alignment for hitching (Deleted with (ZW9) pickup bed delete.)
• Forward Collision Alert (Included and only available with (PDI) Sierra HD Pro Safety.)
• Following Distance Indicator (Included and only available with (PDI) Sierra HD Pro Safety.)
• Lane Departure Warning (Included and only available with (PDI) Sierra HD Pro Safety.)
• Rear Seat Belt Indicator (Requires Crew Cab or Double Cab model.)
• Seat Belt Adjustable Guide Loops, front row only (Included and only available on Crew Cab and Double Cab models. Not available with (ZW9) pickup bed delete.)
• Buckle to Drive prevents vehicle from being shifted out of Park until driver seat belt is fastened; times out after 20 seconds and encourages seat belt use (Included and only available with (PDI) Sierra HD Pro Safety.)
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System, auto learn includes Tire Fill Alert (does not apply to spare tire)
• Trailering Information Label provides max trailer ratings for tongue weight, conventional, gooseneck and 5th wheel trailering (Not available on (ZW9) pickup bed delete.)
• 3 Years of OnStar Remote Access. The OnStar Remote Access Plan gives you simplified remote control of your properly equipped vehicle and unlocks a variety of great features in your myGMC mobile app. See dealer for details. (OnStar Remote Access Plan does not include emergency or security services. Fleet customers will get Fleet Remote Access through OnStar Vehicle Insights. See onstar.com for details and limitations. Available on select Apple and Android devices. Service availability, features and functionality vary by vehicle, device, and the plan you are enrolled in. Terms apply. Device data connection required.)

PRO PREFERRED EQUIPMENT GROUP

• includes standard equipment

SNOW PLOW PREP/CAMPER PACKAGE

• includes (KW5) 220-amp alternator
• includes increased front GAWR on Heavy Duty models
• (NZZ) skid plates (transfer case and oil pan)
• pass through dash grommet hole and roof emergency light provisions. Contact GM Upfitter Integration at www.gmupfitter.com for plow installation details and assistance. Note: if ordered for Camper usage
• recommend ordering (UY2) Trailering wiring provisions

SKID PLATES

• protect the oil pan
• front axle and transfer case

SEATS, FRONT 40/20/40 SPLIT-BENCH

• with covered armrest storage and under-seat storage (lockable) (STD)

AUDIO SYSTEM, GMC INFOTAINMENT SYSTEM WITH 7" DIAGONAL COLOR TOUCH-SCREEN

• AM/FM stereo with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones; featuring wired Android Auto and Apple CarPlay capability for compatible phones (STD)

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8, B20-DIESEL COMPATIBLE

• (470 hp [350.5 kW] @ 2800 rpm
• 975 lb-ft of torque [1322 Nm] @ 1600 rpm) Includes (K05) engine block heater.)

PICKUP BED, DELETE

• includes capped fuel fill
• (SFW) Back-up alarm calibration
• (9J4) rear bumper delete
• (9L3) spare tire delete and spare tire carrier delete.

BACK-UP ALARM CALIBRATION

• This calibration will allow installation of an aftermarket backup alarm by disabling rear perimeter lighting

REAR CAMERA KIT

• Kit includes camera
• fixed position bracket & 19 ft cable with attachment clips. Rear camera radio calibration provided from the factory. See Upfitter Integration Bulletin for installation instructions at www.gmupfitter.com

UPFITTER SWITCH KIT, (5)

• Provides 3-30 amp and 2-20 amp configurable circuits to facilitate installation of aftermarket electrical accessories. Kit with all required parts will be shipped loose with the truck for installation by the dealer or upfitter at customer expense. Installation instructions and technical assistance available at www.gmupfitter.com.

TIRES, LT245/75R17E ALL-SEASON, BLACKWALL

• (STD)

LICENSE PLATE KIT, FRONT, INCANDESCENT LIGHTING

• (will be forced on orders with ship-to states that require front license plate)

TIRE, SPARE LT245/75R17E ALL-SEASON, BLACKWALL

• (STD)

STEERING COLUMN, TILT-WHEEL, MANUAL

• with wheel locking security feature (Beginning February 27
• 2023 through June 4
• 2023
• certain vehicles will be forced to include (N37) manual tilt/telescoping steering column that will remove the (N33) Tilt-Wheel manual steering column. Does not include later dealer retrofit. See dealer for details or the window label for the features on a specific vehicle.)

• Preferred Equipment Group 1SA: OnStar and GMC Connected Services Capable; Remote Keyless Entry; 2-Speed Electronic Shift Transfer Case; Sierra HD Pro Safety; Wireless Phone Projection; Solar Absorbing Tinted Glass; Push Button Start; Chrome Grille with Flat Black Grille Insert Bars; 2 Charge/data USB Ports
• Snow Plow Prep/camper Package: 220-Amp Alternator; Skid Plates
• LT245/75R17E AS BW Spare Tire
• Integrated Trailer Brake Controller
• Steering Wheel-Mounted Cruise Control
• Upfitter Switch Kit (5)
• Skid Plates
• SEO: Rear Camera Kit
• SEO: Back-Up Alarm Calibration
• Apple CarPlay/Android Auto smart device wireless mirroring
• Forward Collision Alert with Automatic Braking
• Front Pedestrian Braking
• Wi-Fi Hotspot capable mobile hotspot internet access
• Automatic Emergency Braking predictive brake assist system
• Cruise control with steering wheel mounted controls
• Primary monitor touchscreen
• Lane Departure Warning
• Part-time 4WD
• Teen Driver restricted driving mode/alerts
• Auxiliary camera
• Keyfob window control
• Push-button
• Bluetooth® wireless audio streaming
• Following Distance Indicator
• Smart key with push button start
• IntelliBeam auto high-beam headlights
• Immobilizer
• Bluetooth® handsfree wireless device connectivity
• Trailer brake controller
• Trailer sway control
• GMC Infotainment System external memory control
• Internet radio capability
• StabiliTrak w/Proactive Roll Avoidance electronic stability control system with anti-roll
• Hill start assist
• Rear Seat Reminder rear seat check warning
• LED daytime running lights
• Manual rear child safety door locks
• MyGMC Mobile App mobile app access
• Gauge cluster display size: 3.50
• Manual tilting steering wheel
• Wheel hub covers
• Manual extendable trailer mirrors
• Upfitter switches
• 17 x 7.5-inch front and rear silver steel wheels
• LT245/75SR17 AS BSW front and rear tires
• Cloth front seat upholstery
• 6 airbags
• Driver front impact airbag
• Seat mounted side impact driver airbag
• Curtain first and second-row overhead airbags
• Passenger front impact airbag
• Seat mounted side impact front passenger airbag
• Airbag occupancy sensor
• Auto-locking doors
• Intercooled turbo
• Allison 10-speed automatic
• Tow/Haul Mode selectable mode transmission
• Cloth rear seat upholstery
• Manual climate control

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 220
• Maximum Alternator Capacity (amps): 170
• Maximum Alternator Watts: N/A
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): - TBD -
• Gross Axle Wt Rating - Rear (lbs): - TBD -
• Curb Weight - Front (lbs): 4089
• Curb Weight - Rear (lbs): 2847
• Gross Vehicle Weight Rating Cap (lbs): 11350
• Gross Vehicle Weight Rating Cap (lbs): 10650
• Gross Combined Wt Rating (lbs): 26000
• Gross Combined Wt Rating (lbs): 24500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 18500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 16000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1850
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1600
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 19000
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 18370
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4750
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4592
• Maximum Trailering Capacity (lbs): 20000
• Suspension
• Suspension Type - Front: Short/Long Arm
• Suspension Type - Rear: Multi-Leaf Springs
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.42
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 2.01
• Shock Absorber Diameter - Rear (mm): 2.01
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14 x 1.6
• Rear Brake Rotor Diam x Thickness (in): 14.1 x 1.3
• Tires
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QHQ
• Spare Tire Order Code: ZHQ
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17 x - TBD -
• Rear Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 57
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 172
• Length, Overall (in): 266.77
• Width, Max w/o mirrors (in): 81.85
• Height, Overall (in): 79.65
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): 55.24
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.08
• Ground Clearance, Rear (in): 10.08
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.27
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 50.55
• Cargo Box (Area) Height (in): 21
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 83.5
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 40.12
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.3
• Second Hip Room (in): 60.24
• Summary

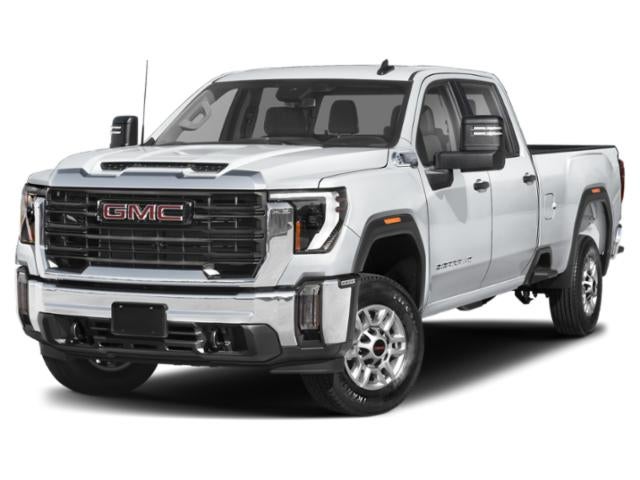

• Vehicle Name: GMC Sierra 2500HD
• Body Style: Crew Cab Chassis Cab
• Body Style: Crew Cab Pickup
• Body Code: ZW9
• Body Code: E63
