• Rear axle, 3.08 ratio (Not available with (NHT) Max Trailering Package.)
• Suspension Package, Premium Smooth Ride (Not available with (NHT) Max Trailering Package.)
• GVWR, 7300 lbs. (3311 kg) (Requires 4WD model.)
• Transfer case, active, single-speed, electronic Autotrac with rotary controls, does not include neutral. Cannot be dinghy towed (Requires 4WD model. Not available with (NHT) Max Trailering Package.)
• Differential, heavy-duty locking rear
• 4-wheel drive
• Battery, 720 cold-cranking amps with 80 amp hour rating
• Alternator, 150 amps
• Trailering equipment includes trailering hitch platform, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector and 2" trailering receiver
• Suspension, front coil-over-shock with stabilizer bar
• Suspension, rear multi-link with coil springs
• Steering, power

• Wheels, 18" x 8.5" (45.7 cm x 21.6 cm) aluminum with high-polished finish
• Tires, P265/65R18 all-season, blackwall
• Tire, spare P265/70R17 all-season, blackwall
• Wheel, full-size spare, 17" (43.2 cm) steel
• Tire carrier, lockable outside spare, winch-type mounted under frame at rear
• Fascia, front body-color
• Fascia, rear color-keyed ((PCK) Luxury Package and (PDA) Texas Edition Package includes trailer hitch close out.)
• Luggage rack side rails, roof-mounted
• Assist steps, Black (Deleted when (RVQ) Assist step kit, Black, LPO or (VXH) Assist step kit, Chrome, LPO are ordered.)
• Headlamps, IntelliBeam, automatic high beam on/off
• Daytime Running Lamps, with automatic exterior lamp control
• Mirrors, outside heated power-adjustable, manual-folding and color keyed driver mirror includes spotter mirror
• Glass, deep-tinted
• Wipers, front intermittent, Rainsense
• Wiper, rear intermittent with washer
• Liftgate, power

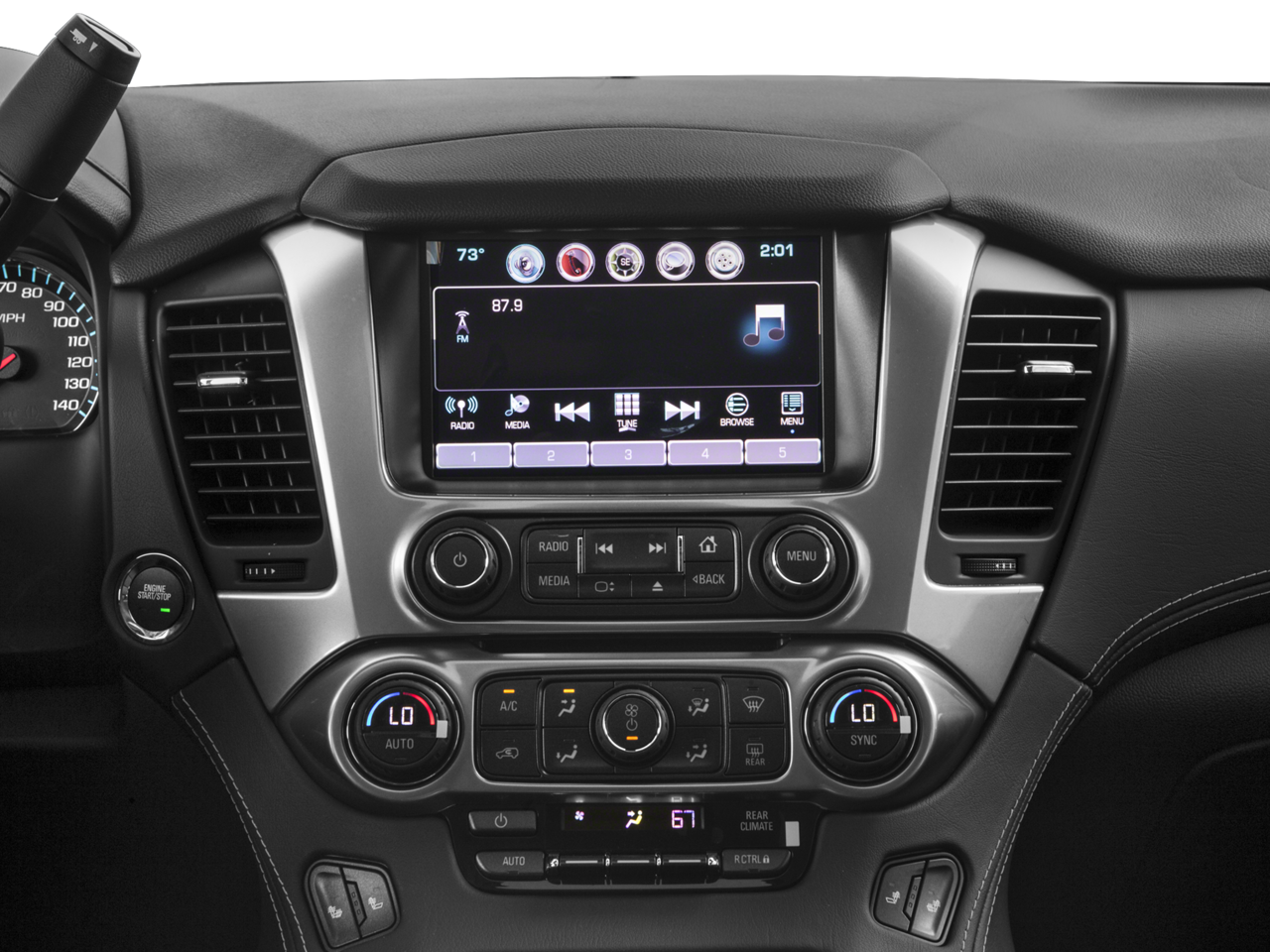

• Audio system, Chevrolet MyLink Radio with 8" diagonal color touch-screen AM/FM stereo, seek-and-scan and digital clock, includes Bluetooth® streaming audio for music and select phones; voice-activated technology for radio and phone; featuring Apple CarPlay capability for compatible phone; 5 USB ports and 1 auxiliary jack
• Audio system feature, single-slot CD/MP3 player (Replaced by (U42) rear seat entertainment system when (U42) is ordered.)
• Audio system feature, Bose premium 9-speaker system with subwoofer in center console
• SiriusXM Satellite Radio is standard on nearly all 2016 GM models. Enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music, plus sports, news and entertainment. Plus listening on the app and online is included, so you'll hear the best SiriusXM has to offer, anywhere life takes you. Welcome to the world of SiriusXM. (IMPORTANT: The SiriusXM Satellite Radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call us at 1-866-635-2349. See our Customer Agreement for complete terms at www.siriusxm.com. All fees and programming subject to change.)
• Radio, HD
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system
• OnStar with 4G LTE and built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds, includes 3GB or 3 months OnStar Data Trial (whichever comes first) (Available 4G LTE Wi-Fi requires compatible mobile device, active OnStar subscription and data plan after trial.) (Available 4G LTE Wi-Fi requires compatible mobile device, active OnStar subscription and data plan after trial.)

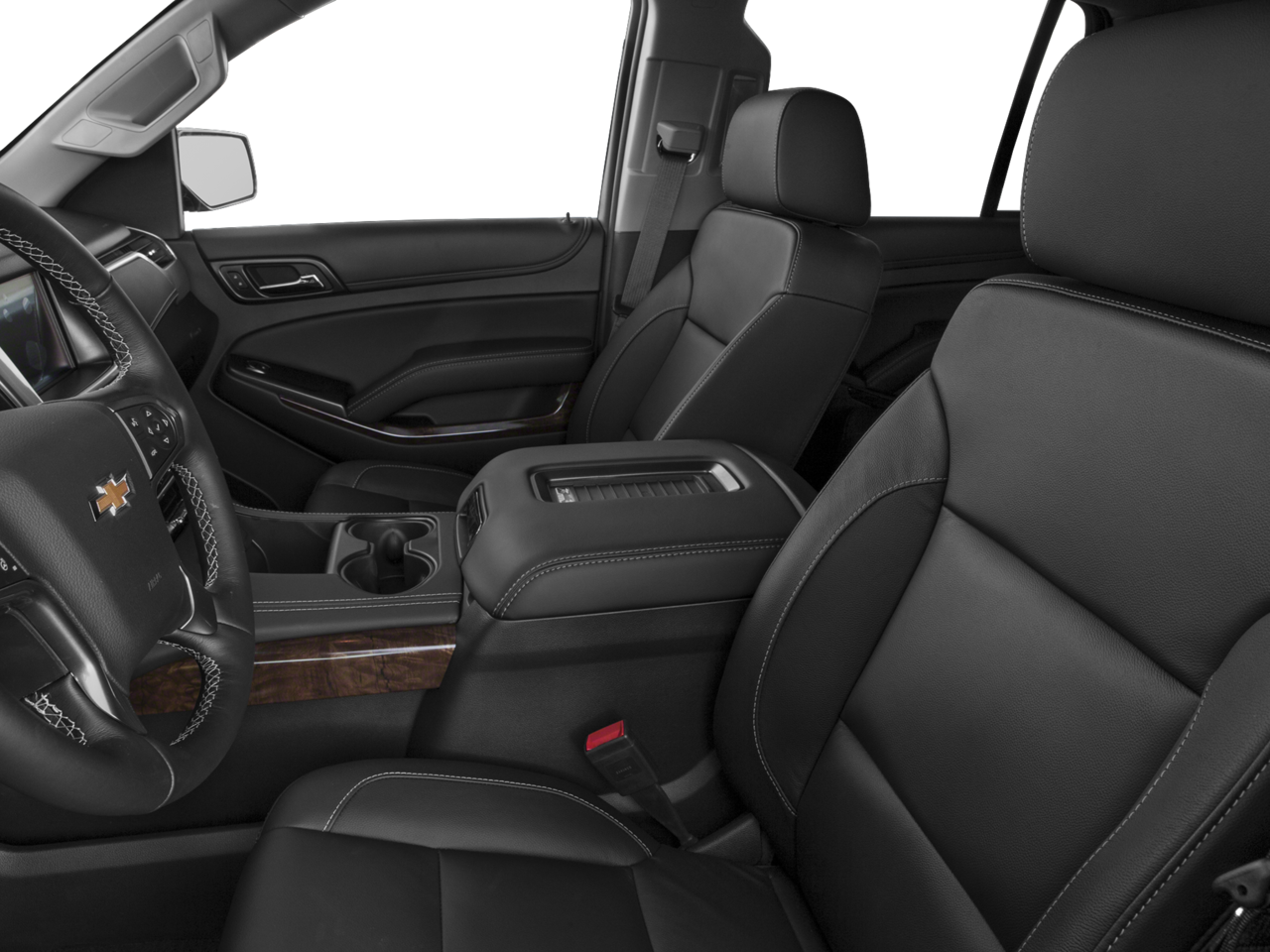

• Seating, front bucket with leather-appointed seating heated seat cushions and seat backs, 10-way power driver and passenger seat includes 6-way power cushions, driver seat 2-position memory, 2-way power lumbar control and power recline
• Seat trim, leather-appointed front seats
• Seat adjuster, front passenger 6-way power
• Memory settings recalls presets for driver power seat adjuster and pedals (When (PCK) Luxury Package or (PDA) Texas Edition Package are ordered, also includes memory presets for outside rearview mirrors and power steering column.)
• Seats, second row 60/40 split-folding bench, manual
• Seat, third row manual 60/40 split-folding bench, fold flat (Not included when (PCK) Luxury Package or (PDA) Texas Edition Package are ordered.)

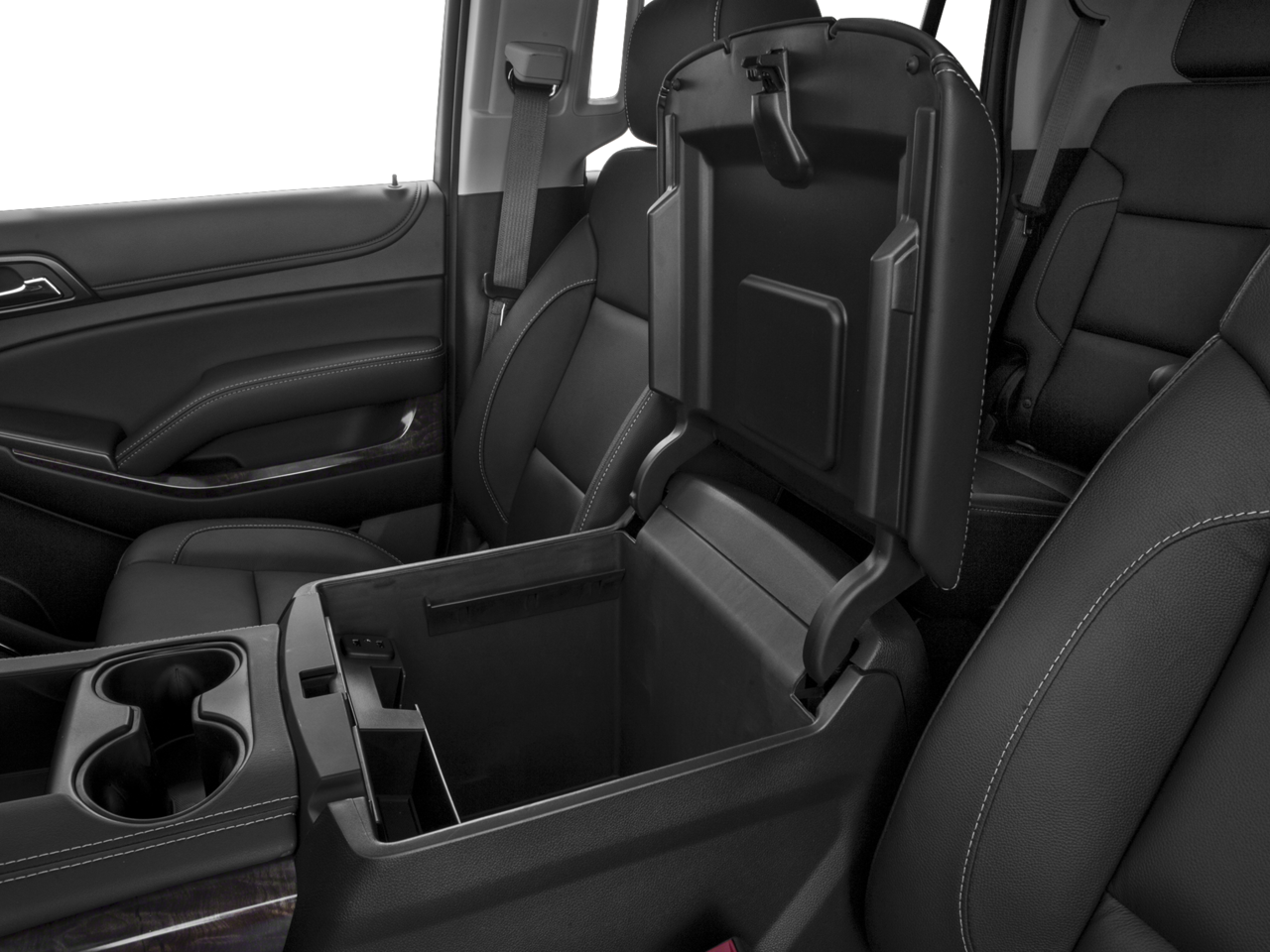

• Console, floor with storage area, cup holders and auxiliary jack
• Floor covering, color-keyed carpeting
• Floor mats, color-keyed carpeted first and second row, removable (Deleted when (Z71) Off-Road Package is ordered.)
• Steering column, manual tilt and telescopic

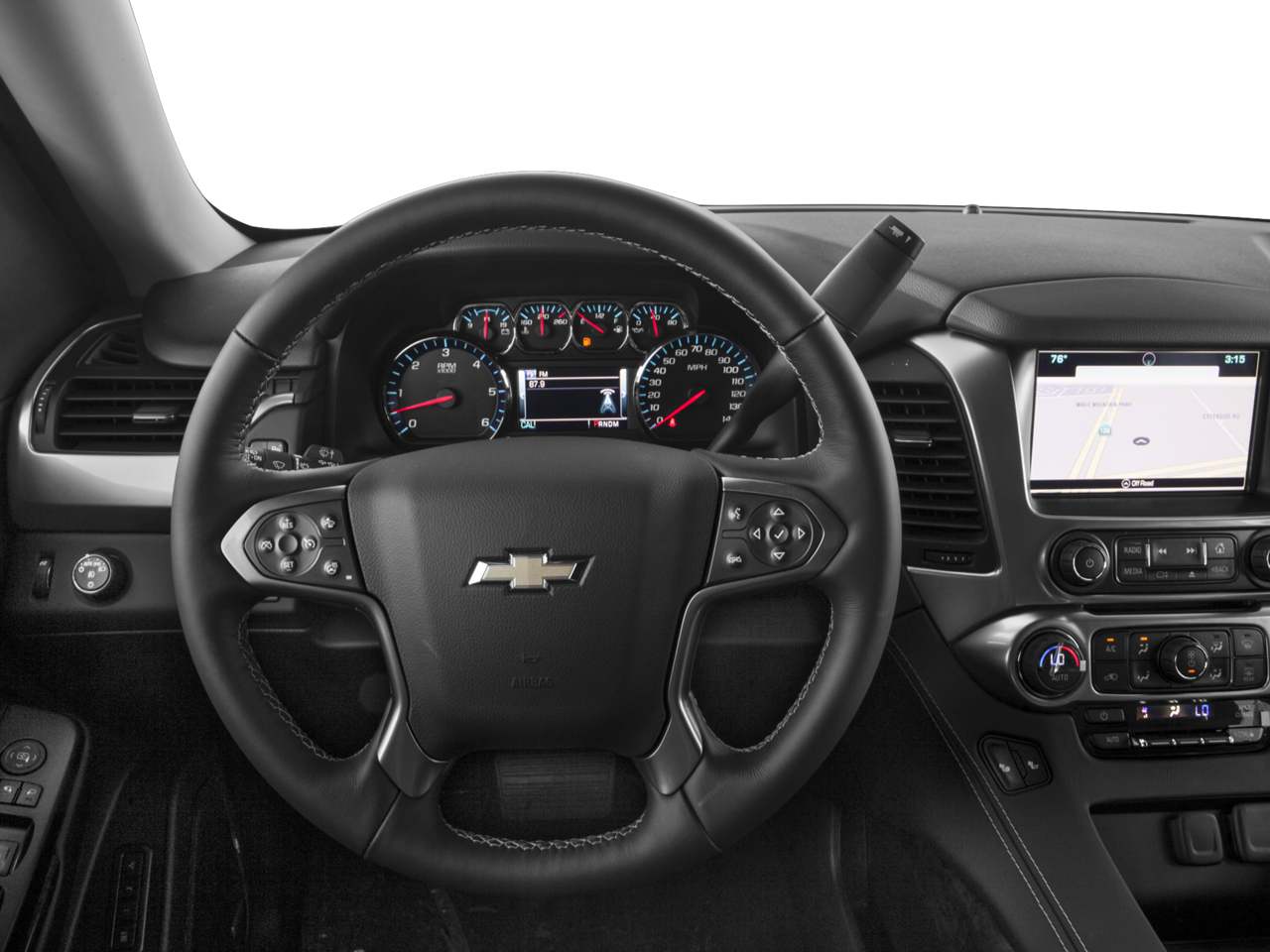

• Steering wheel, leather-wrapped
• Steering wheel controls, mounted audio and cruise controls includes Driver Information Center controls
• Display, driver instrument information enhanced, multi-color 4.2" diagonal
• Warning tones headlamp on, key-in-ignition, driver and right-front passenger safety belt unfasten and turn signal on
• Door locks, power programmable with lockout protection
• Remote Keyless Entry, extended-range (Not included when (PCK) Luxury Package or (PDA) Texas Edition Package are ordered.)
• Remote vehicle start
• Windows, power, with Express-Down and Express-Up on front doors and lock out features
• Cruise control, electronic with set and resume speed
• Universal Home Remote includes garage door opener, programmable
• Pedals, power-adjustable for accelerator and brake
• Climate control, tri-zone automatic with individual climate settings for driver, right-front passenger and rear passengers
• Defogger, rear-window electric
• Power outlet, 110-volt
• Power outlets, 5 auxiliary, 12-volt includes outlets in the instrument panel, console, back of console, 1 in 3rd row and 1 in cargo area
• Mirror, inside rearview auto-dimming
• Conversation mirror (Deleted when (UTT) Theft Protection Package is ordered.)
• Assist handles, all seats
• Lighting, interior with dome light, driver- and passenger-side door switch with delayed entry feature, cargo lights, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions.
• Cargo management system
• Cargo net
• OnStar Basic plan for 5 years including limited RemoteLink mobile app services, Advanced Diagnostics and Dealer Maintenance Notification (Basic Plan available for 5 years from the date of vehicle delivery, and is transferable. Does not include Emergency, Security or Navigation services.)

• Brakes, 4-wheel antilock, 4-wheel disc, VAC power
• StabiliTrak, stability control system with brake assist, includes traction control
• Air bags, frontal and side-impact for driver and front passenger driver inboard seat-mounted side-impact and head curtain side-impact for all rows in outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Automatic Occupant Sensing System sensor indicator inflatable restraint, front passenger/child presence detector
• Safety Alert Driver Seat
• OnStar Guidance Plan for 6 months including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance, Turn-by-Turn Navigation, Advanced Diagnostics and more (trial excludes Hands-Free Calling) (Visit www.onstar.com for coverage map, details and system limitations. Services may vary by model and conditions.)
• Rear Park Assist with audible warning
• Rear Vision Camera
• Forward Collision Alert sensor indicator
• Lane Keep Assist
• LATCH system (Lower Anchors and Top tethers for Children), for child safety seats; lower anchors and top tethers located in all second row seating positions, top tethers located in third row seating positions
• Tire Pressure Monitor System air pressure sensors in each tire with pressure display in Driver Information Center
• Theft deterrent, electrical, unauthorized entry

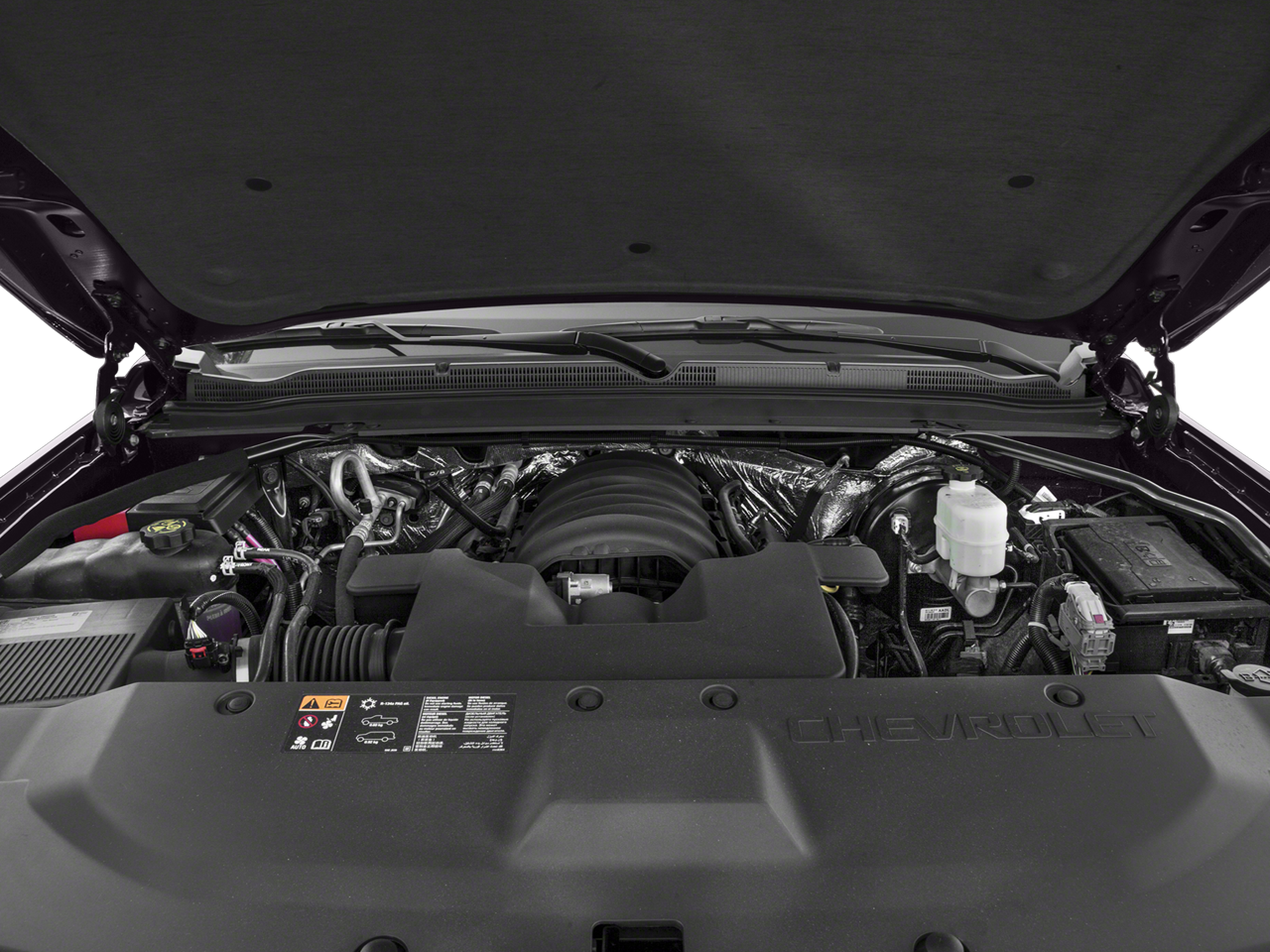

ENGINE, 5.3L ECOTEC3 V8 WITH ACTIVE FUEL MANAGEMENT, DIRECT INJECTION AND VARIABLE VALVE TIMING

• includes aluminum block construction (355 hp [265 kW] @ 5600 rpm
• 383 lb-ft of torque [518 N-m] @ 4100 rpm) (STD)

• Luxury Package: 2nd Row Power Release 60/40 Split Folding Bench Seat; Heated 2nd Row Seats; Hands Free Power Liftgate; Heated Leather Wrapped Steering Wheel; Memory Settings; 3rd Row 60/40 Power Fold Split-Bench; Front and Rear Parking Assist; Power-Folding Heated Outside Mirrors; Side Blind Zone Alert with Lane Change Alert; Power Tilt and Telescopic Steering Column with Memory; Passive Entry System; Fog Lamps; Rear Cross-Traffic Alert; Push Button Keyless Start; Wireless Charging
• Max Trailering Package: 2-Speed Active Electronic Autotrac Transfer Case; Standard Suspension Package; 3.42 Rear Axle Ratio; Integrated Trailer Brake Controller
• Preferred Equipment Group 1LT: Memory Settings; Leather-Appointed Seat Trim; Power Liftgate; Rear Park Assist with Audible Warning; Floor Console; OnStar Basic Plan For 5 Years; 18" X 8.5" Aluminum Wheels; 7
• 300 lbs (3
• 311 Kgs) GVWR; Enhanced Driver Instrument Information Display; Enhanced Driver Alert Package; Driver Inboard and Front Passenger Airbags; Universal Home Remote; Color-Keyed Carpeting Floor Covering; Extended-Range Remote Keyless Entry; 2nd Row 60/40 Split-Folding Manual Bench; Bose Premium 9-Speaker System; 1st and 2nd Row Color-Keyed Carpeted Floor Mats; Front Heated Reclining Bucket Seats; Electronic Cruise Control with Set and Resume Speed; 5 12-Volt Auxiliary Power Outlets; SiriusXM Satellite Radio; Single-Speed Elec Autotrac Active Transfer Case; Black Assist Steps; Leather-Wrapped Steering Wheel; Roof-Mounted Luggage Rack Side Rails; Auto-Dimming Inside Rearview Mirror; Power-Adjustable Accelerator and Brake Pedals; 3rd Row Manual 60/40 Split-Folding Fold Flat Bench; P265/65R18 AS BW Tires; 4-Wheel Antilock Disc Brakes

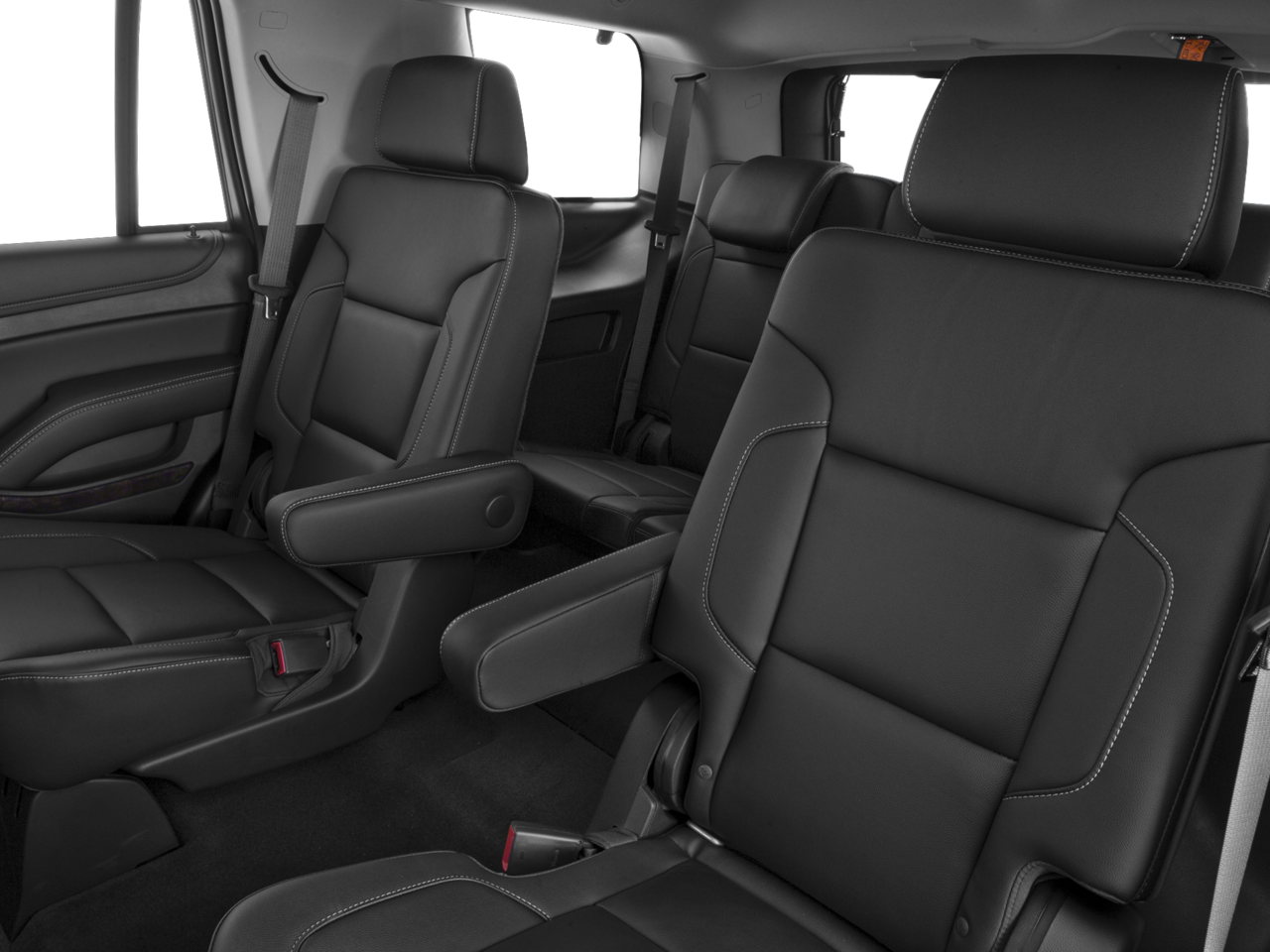

• Power Release 2nd Row Bucket Seats
• Chevrolet MyLink Radio with Navigation/AM/FM Stereo
• Apple CarPlay smart device mirroring
• OnStar 4G LTE mobile hotspot internet access
• Rear mounted camera
• Lane Keep Assist
• Brake assist system
• Cruise control with steering wheel mounted controls
• Power liftgate rear cargo door

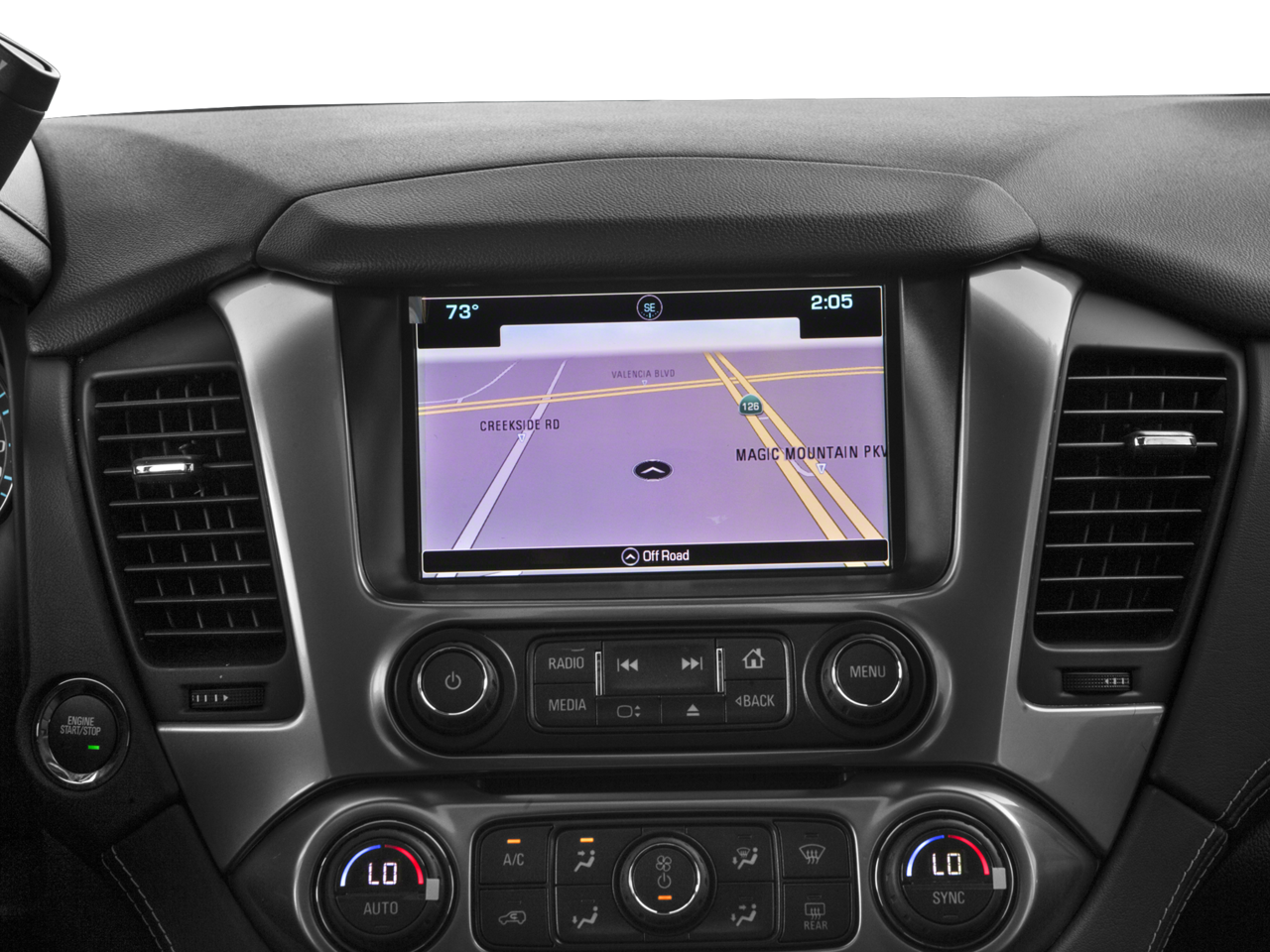

• Integrated navigation system with voice activation
• Keyfob remote start
• Heated steering wheel
• Heated driver and front passenger seats
• Heated rear seats
• Leather front seat upholstery
• Primary monitor touchscreen
• Fixed third-row seats
• Cross Traffic Alert collision warning
• Driver seat power reclining
• lumbar support
• cushion tilt
• fore/aft control and height adjustable control
• AutoTrac part and full-time 4WD
• EcoTec3 5.3L V-8 gasoline direct injection
• variable valve control
• regular unleaded
• engine with cylinder deactivation and 355HP
• EcoTec3 5.3L V-8
• Front wireless smart device charging
• Smart key with hands-free access and push button start
• Smart device remote start
• Push-button
• OnStar vehicle tracker with vehicle slowdown
• Bluetooth® wireless audio streaming
• Blind spot warning
• Forward Collision Alert with Automatic Braking
• Dual-zone front climate control
• Rear climate control system with separate controls
• IntelliBeam auto high-beam headlights
• Immobilizer
• Bose speakers
• OnStar Guidance vehicle integrated emergency SOS system
• Bluetooth® handsfree wireless device connectivity
• Trailer brake controller
• Trailer sway control
• Chevrolet MyLink external memory control
• Pandora internet radio capability
• 5 USB ports
• Electronic stability control system with anti-roll
• Hill start assist
• Leather rear seat upholstery
• Flip-up rear windshield
• Automatic climate control
• Rain detecting wipers
• Auto-leveling rear suspension
• Front fog lights
• Leather steering wheel
• Manual rear child safety door locks

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• Fuel Economy Est-Combined (MPG): 18
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 22
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 4100
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 7300
• Gross Combined Wt Rating (lbs): - TBD -
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 640
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Link
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3600
• Axle Capacity - Rear (lbs): 4100
• Axle Ratio (:1) - Front: 3.08
• Axle Ratio (:1) - Rear: 3.08
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: RKX
• Rear Tire Order Code: RKX
• Spare Tire Order Code: RC4
• Front Tire Size: P265/65R18
• Rear Tire Size: P265/65R18
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 18 x 8.5
• Rear Wheel Size (in): 18 x 8.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 39.0
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 116.00
• Length, Overall w/rear bumper (in): 204.00
• Width, Max w/o mirrors (in): 80.50
• Height, Overall (in): 74.40
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 35.91
• Ground Clearance, Front (in): 7.87
• Ground Clearance, Rear (in): 7.87
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Step Up Height - Front (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): 79.90
• Cargo Area Length @ Floor to Seat 2 (in): 43.20
• Cargo Area Length @ Floor to Seat 3 (in): 11.10
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 49.30
• Cargo Box (Area) Height (in): 33.94
• Cargo Volume to Seat 1 (ft³): 94.7
• Cargo Volume to Seat 2 (ft³): 51.7
• Cargo Volume to Seat 3 (ft³): 15.3
• Interior Dimensions
• Passenger Capacity: 8
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.30
• Front Shoulder Room (in): 64.80
• Front Hip Room (in): 60.80
• Second Head Room (in): 38.70
• Second Leg Room (in): 39.00
• Second Shoulder Room (in): 65.10
• Second Hip Room (in): 60.30
• Third Head Room (in): 38.10
• Third Leg Room (in): 24.80
• Third Shoulder Room (in): 62.60
• Third Hip Room (in): 49.30
• Summary
• Vehicle Name: Chevrolet Tahoe
• Body Style: Sport Utility Vehicle
• Body Code: E52
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.8
